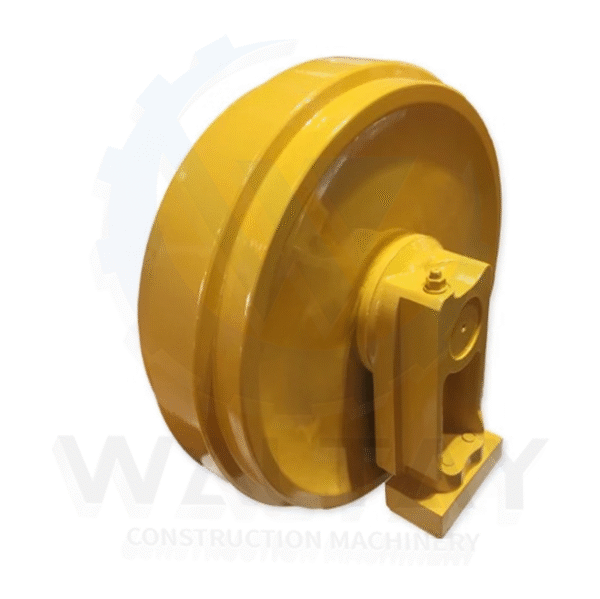

Doosan DX225LC-7 Idler Assembly / Front Idler 200102-00022B – Heavy-Duty Undercarriage Component

Description

The Doosan DX225LC-7 Idler Assembly, part number 200102-00022B, also commonly known as a front idler or tension idler, is a crucial wheel-shaped component of your excavator’s undercarriage system. Strategically located at the front of the track frame, opposite the drive sprocket, its primary functions are to guide the track chain smoothly around the undercarriage and, critically, to work in conjunction with the track adjuster to maintain the correct track tension. This precise tension is essential to prevent the track from derailing, reduce premature wear on track links, bushings, and other components, and absorb operational shock loads, thereby protecting the entire undercarriage structure from excessive stress. This idler assembly is explicitly compatible with various Doosan models including DX225LC-3, DX225LCA, DX225LC (S/N 5433~), DX225LC-5 DI, and DX235LCR DI, making it the correct and highly suitable component for your DX225LC-7.

Manufactured to stringent OEM specifications, this idler assembly is typically constructed from high-strength alloy steel, such as 35MnB, 40MnB, or 50Mn, through advanced casting, forging, and precision machining techniques. Its robust design, weighing approximately 116 kg, is built to withstand the rigorous demands of heavy excavation, supporting significant loads and guiding the track effectively. The idler’s running surface is meticulously heat-treated, achieving optimal hardness (HRC52-58 with a hardened depth of 8-12mm) and exceptional wear resistance, crucial for longevity due to its constant contact with the track links. The assembly is designed to be sealed and lubricated for life, incorporating heavy-duty floating seals and internal oil lubrication that prevent the ingress of harmful contaminants like dirt, sand, and moisture. This sealed, maintenance-free design ensures smooth, low-friction rotation and significantly contributes to the component’s extended service life.

A worn or damaged idler can lead to a range of severe operational issues, including loose tracks, frequent de-tracking, increased noise and vibration during travel, and accelerated, uneven wear on sprockets and track links. These problems compromise machine stability, reduce operational efficiency, and can result in significant repair costs and unplanned downtime. Replacing a faulty idler with a high-quality, OEM-standard part like the 200102-00022B is paramount for restoring optimal machine mobility, ensuring track system integrity, safeguarding your substantial undercarriage investment, and maximizing operational uptime. This idler is an indispensable replacement for routine maintenance or when addressing issues related to track tension and guidance.

Key Features:

• OEM-Quality Part: Guarantees perfect fitment, uncompromised quality, and strict adherence to original factory performance specifications for Doosan DX225LC-7 and compatible heavy excavators.
• High-Strength Alloy Steel Construction: Fabricated from premium cast/forged alloy steel (e.g., 35MnB, 40MnB, 50Mn) for maximum durability and robust resistance to wear and impact.
• Advanced Heat Treatment: Features a deeply hardened running surface (HRC52-58, depth 8-12mm) for exceptional longevity in challenging operating environments.
• Sealed & Lubricated for Life: Equipped with heavy-duty floating seals and internal lubrication to ensure maintenance-free, smooth rotation and superior protection against contaminants.
• Precision Engineering: Designed with exact dimensions (e.g., Tread Dia. 500mm, Shell Width 160mm) to provide accurate track guidance and maintain optimal track tension.
• Robust Construction: Weighing approximately 116 kg, indicating a solid and durable build for heavy-duty use.

Benefits:

• Maintains Optimal Track Tension: Prevents track looseness and de-tracking, ensuring consistent and reliable machine movement.
• Extends Undercarriage Lifespan: Reduces abrasive wear on track links, sprockets, and other components by minimizing friction and ensuring proper alignment.
• Improves Machine Stability & Control: Contributes to smoother travel and reduced vibration, enhancing operator comfort and overall operational efficiency.
• Superior Durability: Built to withstand demanding working conditions and heavy loads, providing long service intervals and reliable performance.
• Minimizes Downtime & Costs: High-quality construction reduces the likelihood of unexpected failures, helping to prevent extensive repairs and maximize operational uptime.
