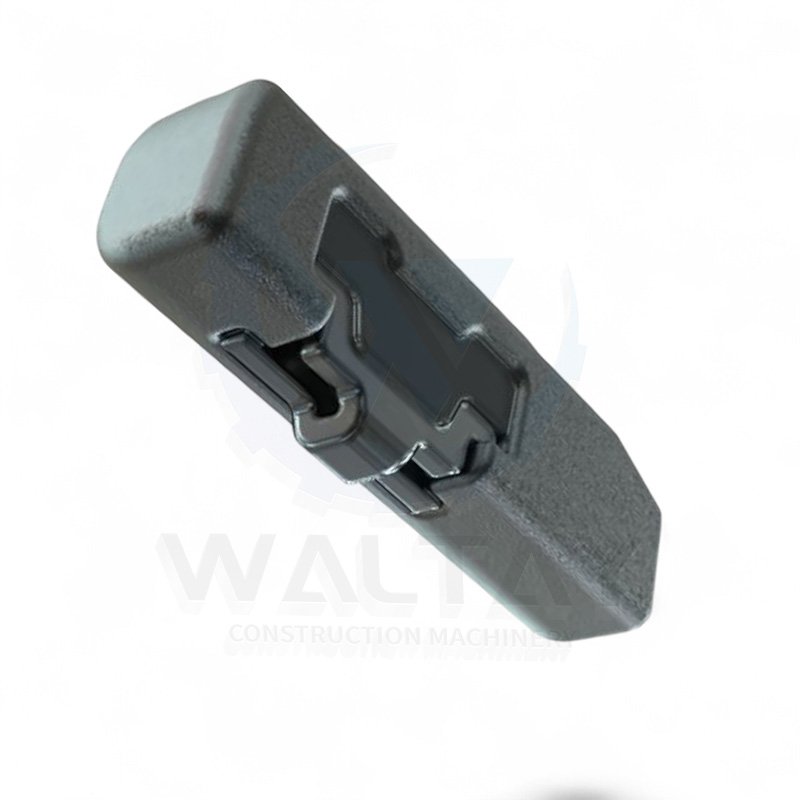

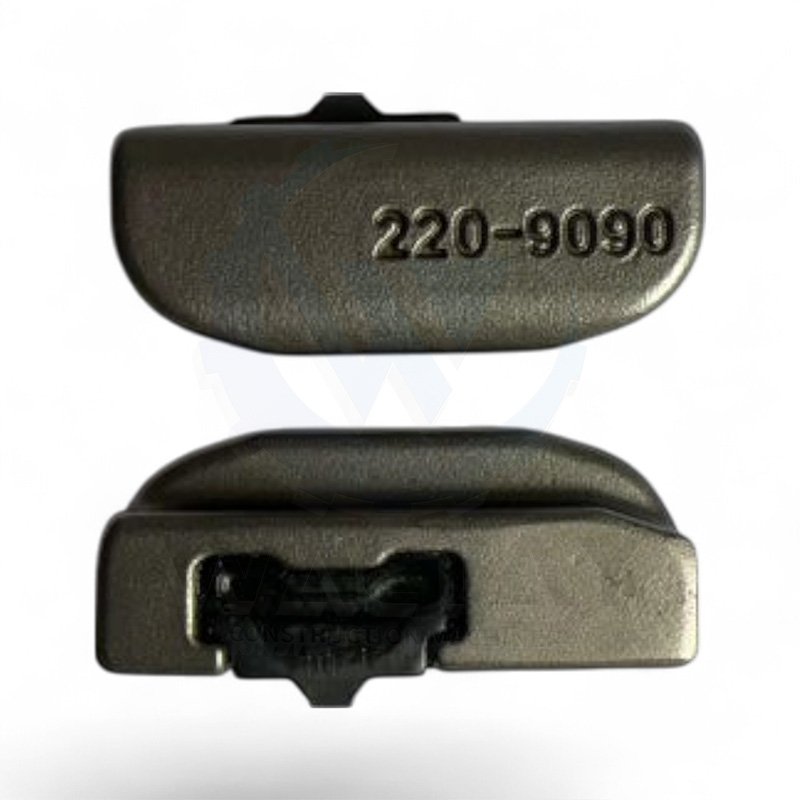

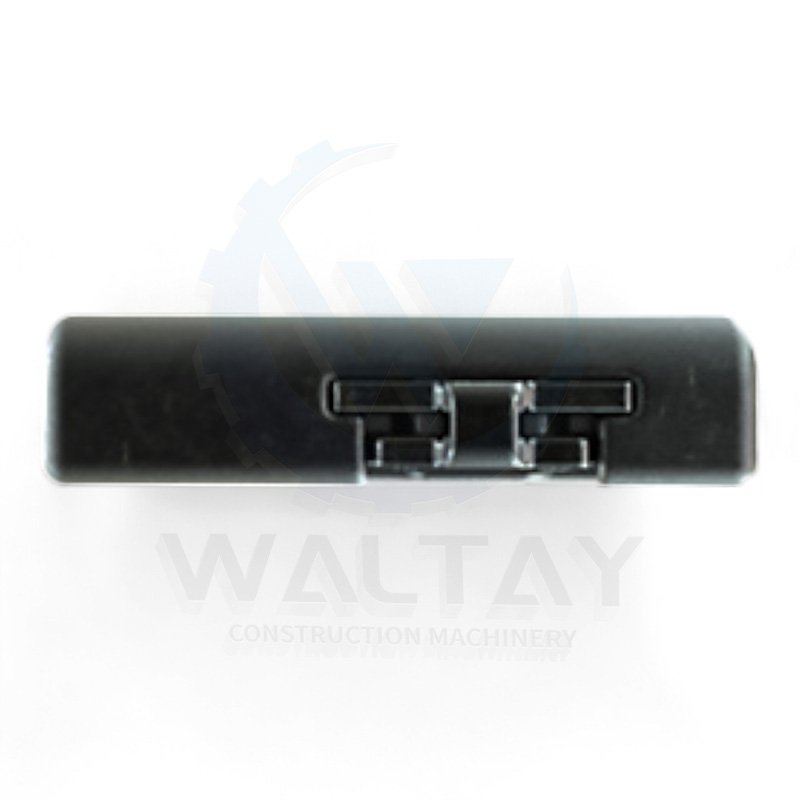

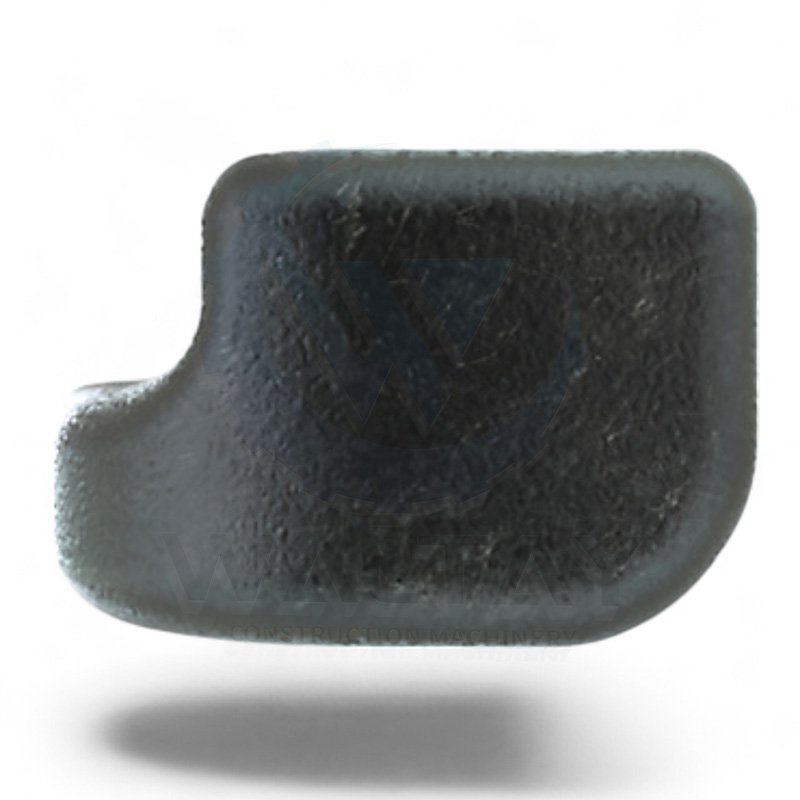

CAT 220-9090 K Series Tip Retainer – Advanced Locking for K Series Bucket Tips

Description

The CAT 220-9090 K Series Tip Retainer is a crucial and advanced locking component specifically designed for Caterpillar’s revolutionary K Series Ground Engaging Tools (GET) system. Unlike older pin-and-retainer systems, the K Series utilizes a hammerless retention system, and this retainer is a key part of that innovation. Its primary function is to securely lock the K Series bucket tip onto its adapter, preventing any movement or dislodgement during the most aggressive digging, loading, and rock breaking operations. This ensures maximum safety, sustained productivity, and superior protection for the bucket and machine.

Manufactured from high-strength, wear-resistant steel, the 220-9090 retainer is engineered to withstand extreme forces, vibrations, and impacts inherent in heavy-duty excavation. The K Series system, and thus this retainer, is characterized by its integrated design where the retention mechanism is often built into the tip and adapter, or the retainer itself acts as the primary locking wedge. This hammerless design significantly improves safety and reduces maintenance time by eliminating the need for traditional striking tools during installation and removal of tips. It creates a tight, precise fit that minimizes wear on both the tip and adapter, extending their lifespan.

The CAT 220-9090 K Series Tip Retainer is essential for a wide range of Caterpillar excavators, wheel loaders, and other heavy equipment that utilize K Series bucket tips. The K Series is found on various machine sizes, offering performance enhancements over older GET systems. As an OEM-standard part, it ensures perfect fitment and reliable performance within the integrated K Series GET system. Regular inspection of K Series components, including retainers, is a vital part of preventive maintenance. Using genuine or high-quality equivalent K Series retainers like the 220-9090 is critical to fully leverage the benefits of the K Series system, ensuring optimal digging efficiency, preventing costly component loss, and maintaining the highest safety standards in severe-duty applications.

Key Features:

• K Series Hammerless Retention: Designed specifically for the advanced, hammerless locking mechanism of Caterpillar K Series GET.
• Secure Tip Locking: Provides a highly reliable and positive lock for K Series bucket tips onto their adapters.
• High-Strength Construction: Made from durable, wear-resistant steel to withstand extreme operational forces and impacts.
• Enhances Safety: Eliminates the need for hammer blows during installation and removal, reducing injury risk.
• Reduces Downtime: Facilitates quicker and easier tip changes compared to traditional pin systems.
• OEM-Standard Quality: Manufactured by Caterpillar to precise specifications for perfect fit and dependable function within the K Series system.

Benefits:

• Improved Safety: Significantly reduces the risk of injury during GET maintenance.
• Increased Productivity: Faster tip changes mean more machine uptime and less service time.
• Prevents Tip Loss: Ensures bucket tips remain securely attached, avoiding lost production and potential damage.
• Extends Component Life: Provides a tighter, more stable connection, reducing wear on both tip and adapter.
• Optimal Performance: Maintains consistent tip position for maximum digging efficiency.
• Streamlined Maintenance: Simplifies the process of replacing worn ground engaging tools.
